Description:
-
Vastly reduce manpower and improve efficiency.
-

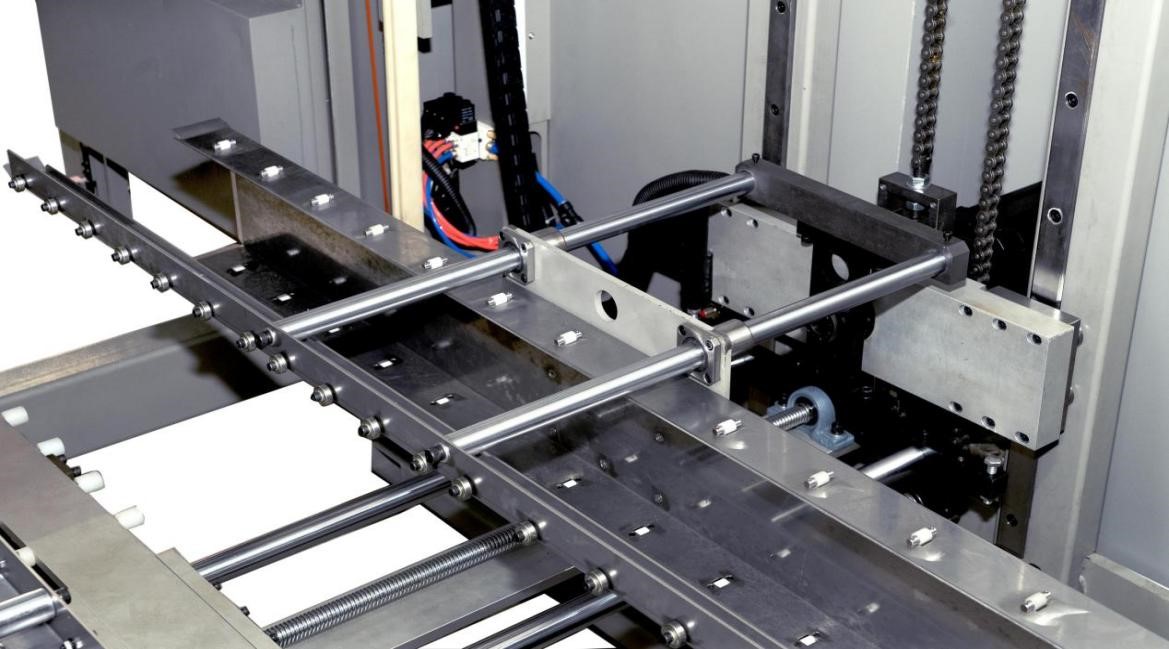

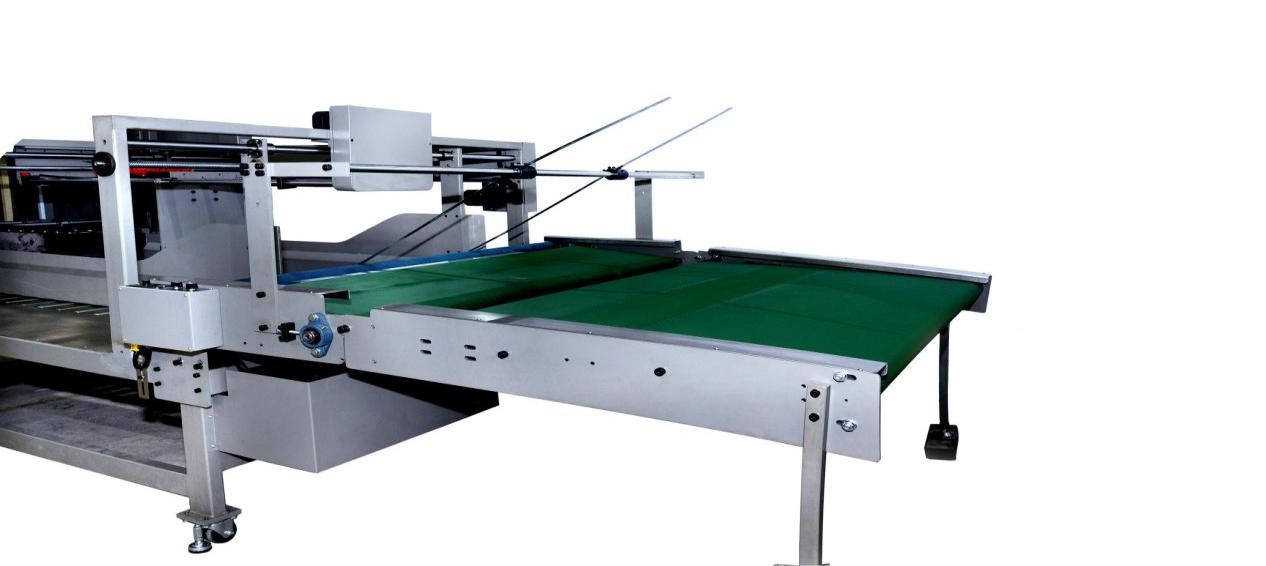

Automatically divide one stack of sheets into a bidirectional turn-over section, then the turn-over mechanism rotates 180 degrees and lifts it to the top, then the pusher will push the sheet into the stacking section.
-
Automatic pallet changing mechanism.
-
Intermittent turning, automatic front, back stacking, and neat stacking. Stacking height:1.6~1.8m.
- It can effectively prevent bending and deformation of the paperboard after laminating. Stacking speed max. 160000 sheets/hour, one-key operation, and easy to learn.
- Pallet change system.
Technical Data:
|
Model |
FZ-1450 |
FZ-1700 |
|
Max. sheet size(mm) |
1450x1450 |
1700x1650 |
|
Min. sheet size(mm) |
480x380 |
480x380 |
|
Machine dimensions (mm) |
8000x2400x3200 |
8500x2800x3200 |
|
Max. stacking speed (pcs/hr) |
16000 |
16000 |
|
Machine weight (kg) |
3800 |
3800 |
|
Machine Power(kW) |
11 |
11 |
|
Power |
380VAC/4P |
380VAC/4P |
|
Air source |
0.8MPa >5.5KW |
0.8MPa >5.5KW |
