BMW series 750L/920L -automatic corner cutting and line pressing window patching machine has been the latest model pushed to market. with the functions of both simple patching and film patching with creasing, this machine can realize the double creasing-double cutting-Circular angle-Round hole- Environmental protection loop mark on PVC.PET.PP.OPP film with a thickness of 0.08-0.3mm.original creation transverse cutting film high speed and quiet. peculiar gluing assembly can be disengaged to avoid glue on the belt in case of no paper. full-digital control function all parameters can be fine-tuned during operation. It is also equipped with multi-sensor detection of each station, real-time monitoring of the running state, and abnormal speed reduction alarm functions. from our continual improvement and philosophy of humanized design, so that it is easy to operate and excellent in efficiency, accuracy, and stability
Technical Parameters:
| Model | BMW-750L | BMW-920L | BMW-1050L |
| Papersize | W730*L650mm-W100*L150mm | W900*L680mm-W150*L150mm | W1030*L720mm-W180*L180mm |
| Film size | W330*L300mm-W30*L50mm | W380*L350mm-W50*L50mm | W450*L400mm-W50*L60mm |
| Paperthickness | Cardboard:200~2000g/m2 Corrugated board:1-6mm |
Cardboard:200~2000g/m2 Corrugated board:1-6mm |
Cardboard:200~2000g/m2 Corrugated board:1-6mm |
| Filmthickness | 0.1~0.3mm（Heating 0.4mm） | 0.1~0.3mm（Heating 0.4mm） | 0.1~0.3mm（Heating 0.4mm） |
| Positioningaccuracy | Top/bottom±0.5mm left/right±0.1mm | Top/bottom±0.5mm left/right±0.1mm | Top/bottom±0.5mm left/right±0.1mm |
| Mechanicalspeed | Up to 7500 sheets/hour | Up to 7500 sheets/hour | Up to 7000 sheets/hour |
| Powervoltage | 380V/50HZ（three phases） | 380V/50HZ（three phases） | 380V/50HZ（three phases） |
| Machinepower | 10.5KW（Heating 16.5KW） | 11.5KW（Heating 17.5KW） | 13.5KW（Heating 19.5KW） |
| Machineweight | 3000KG | 3300KG | 3700KG |
| Dimension(LxW) | L7500*W1450*H1750mm | L7500*W1620*H1750mm | L8000*W1750*H1850mm |
Specificationsorsizesmaybechangedwithoutnoticeduetomechanicalequipmentupgrades！
Equipment Characteristics:

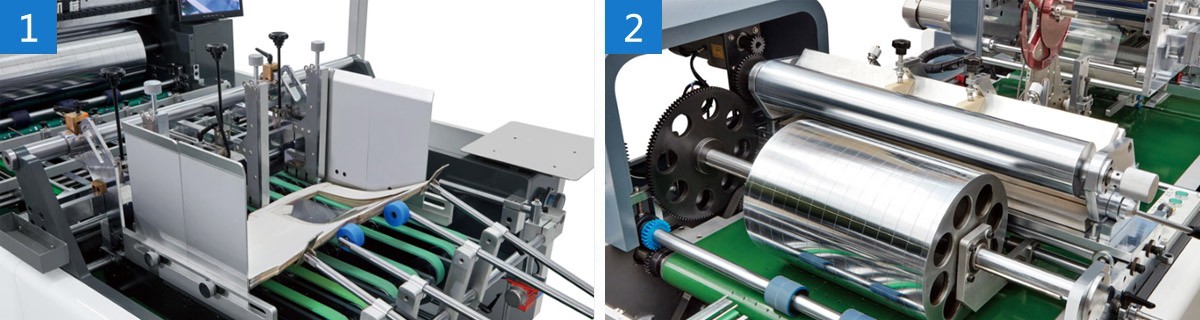

1, Paper Feeding Assembly
This machine used Japan imported belt to draw out the paper from the bottom and non-stop machine was used to continuously add and feed the paper; an intermittent belt for paper carrying and feeding used the servo control, and the intermittent paper carrying length can be adjusted on the human machine operation interface according to the length of paper; multiple carrying belts have been equipped with gear and gear rack device which can adjust the position of belt, be more left or more right.
2, Gluing Assembly
One high-hardness roller circulating glue is used, and the roller basement adopts center- an oriented device to adjust the thickness of glue; with flexo template gluing, the shape can be carved according to the product's need. The roller to install the template has a reference line making the template exact, convenient and fast to install Gluing position can be adjusted more left or more right, the position regulator can adjust it to more front or more behind, and the non-stop machine adjusted the position to all directions needed， The rollers can be disengaged to avoid glue on the belt in case of on paper, Rubber roller can be towed out, cleaning and maintenance are more convenient.

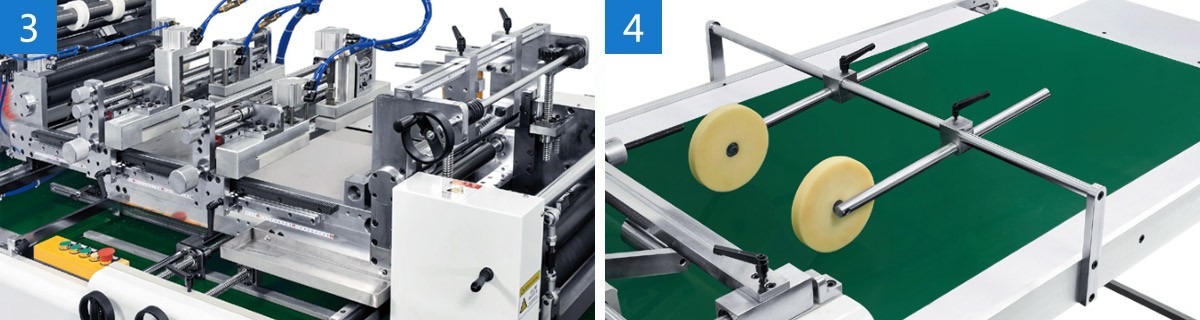

3, Filming Assembly
Independent servo control system is adopted Users can adjust the film length as per product size without shutdown. The base material can be adjusted horizontally; Meanwhile, chamfer lines are cut automatically after the paper is positioned accurately according to the above regulations attach the films to the paper box and cut the film via an automatically transverse cutter The precision of film attachment is up to +0.5mm.
4, Paper Collecting Assembly
Imported soft belt conveying Car; can prevent product crushing, ensures perfect quality.
5, Appliance parts
The whole machine adopts PLC program control. All kinds of electronic components and detector switches are made in Germany, Taiwan, Japan, etc.
6, Film Heating System
Employ an electromagnetic heating system, The heating roller is made of high hardness steel, Mirror chrome plating, and at the same time equipped with two sets of film pulling devices, Guarantee drawing film speed synchronization, So as to ensure that the film does not wipe flowers. Realize the function of flat film.

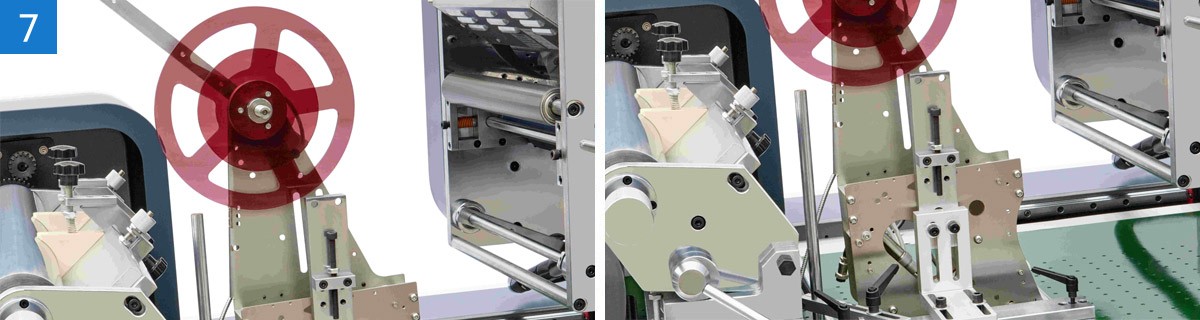

7, Double-faced adhesive tape System
Innovative double-sided adhesive technology can adapt to most types of double-sided adhesive. A double-sided adhesive incision for the toothed mouth, will not cause damage to the product itself. According to the actual situation, select a double-sided adhesive device.
