Intelligent High Speed Flute Laminator GE1450L

Detail Descriptions:

1.  Feeding System for Upper Paper: (Servo Drive)

Adopting dedicated high-speed feeder to make sure that both the thick and the thin papers can be delivered rapidly and smoothly.

2.  Lifting Platform for Upper Paper:

To assort with high-speed feeder, adopting high-intensive turbine reducer to ensure stability when speeding up instantly.

3.  Carrier for Upper Paper:

Adopting paper-piling devices, and feeding paper without stopping can reduce paper supplementing time and increase the working efficiency.

4.  Pre-loading for Upper Paper:

Adopting imported linear guide way and lead screw to ensure the high precision, adjusting the sheet size automatically and saving the paper replacing time infinitely.

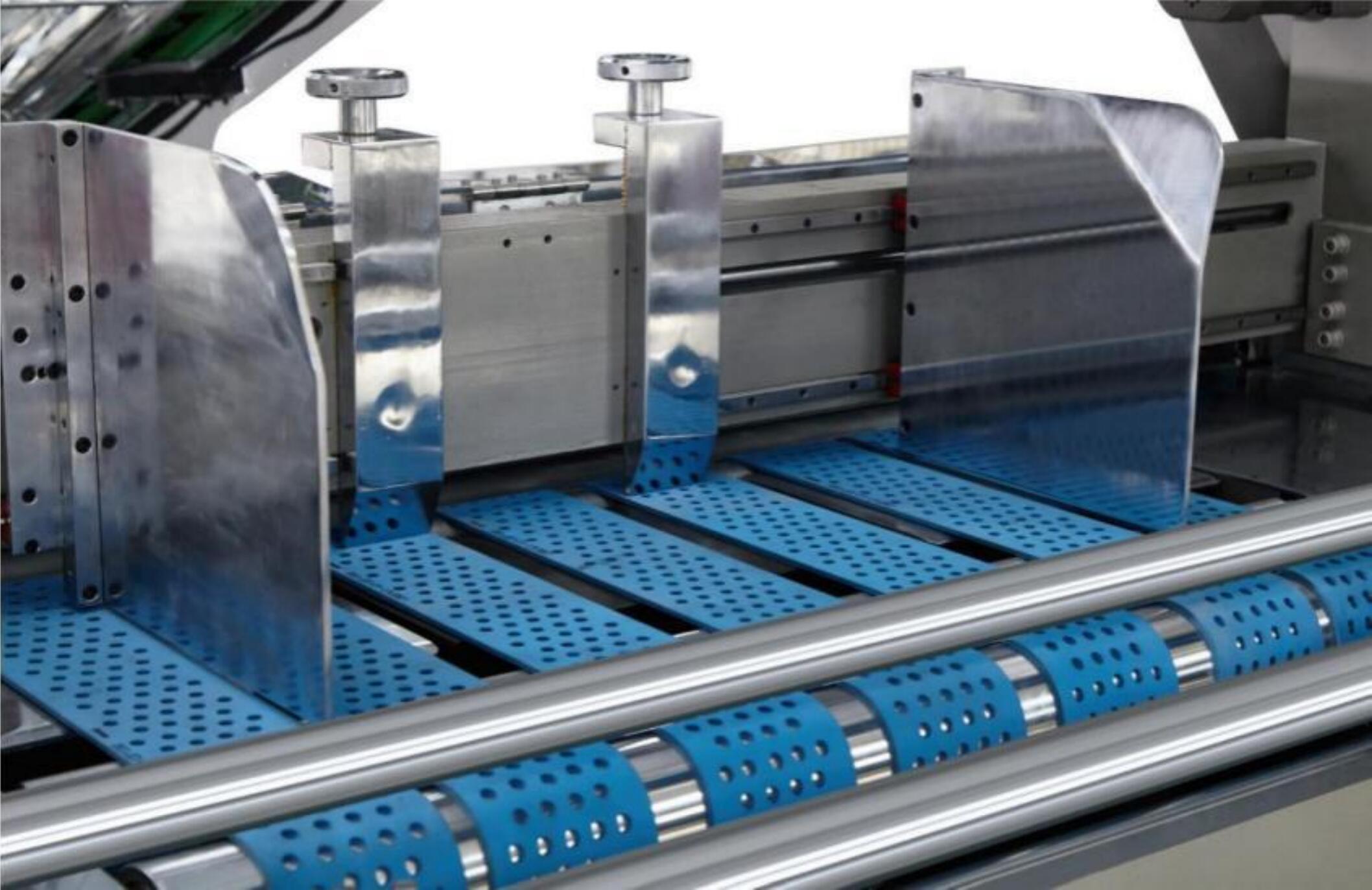

5.  Feeding System for Bottom Paper:

Vacuum suction belts with holes ensure the paper can be fed smoothly and rapidly. Adopt servo drive electric controlling system feeder, easily feed low weight board from 300gsm to heavy board up to 5ply or 10mm.

6.  Automatic lubrication system:

Automatic lubrication system allows the machine free of maintenance.

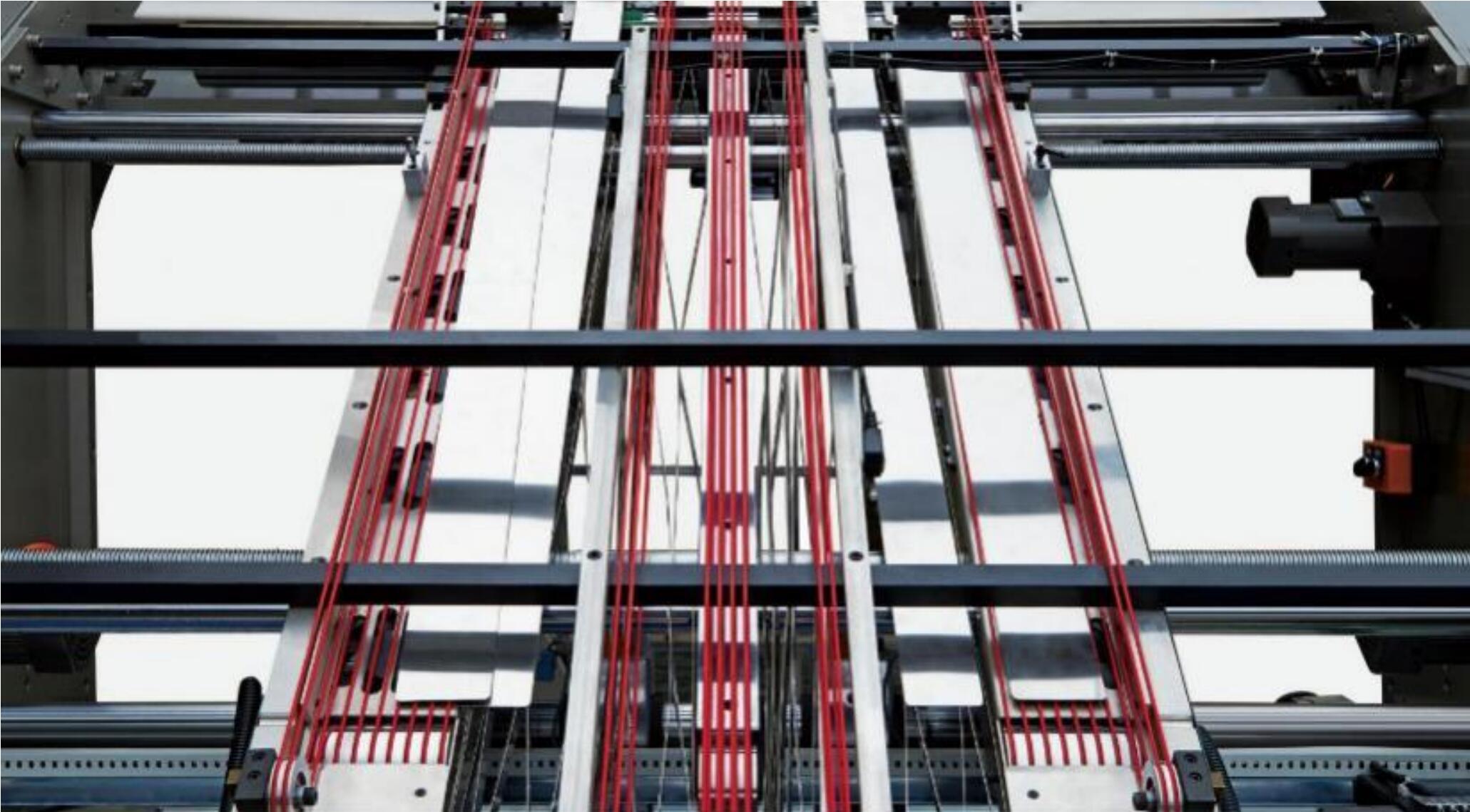

7.  Paper Aligning System:

Adopting advanced high-speed motion control servo tracking system to ensure laminating accuracy.

8.  Operating System:

The whole electric control operating system adopts a motion control system to make the operation easier and relaxed, only need to input the sheet size through a touch screen and can be able to achieve the automatic adjustment, saving the paper replacing time and reducing the operative difficulty index, which shows the superiority of automation indeed.

It can realize remote monitoring and maintenance of equipment.
